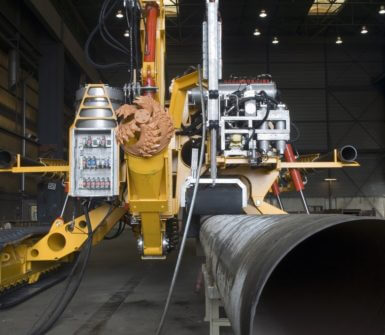

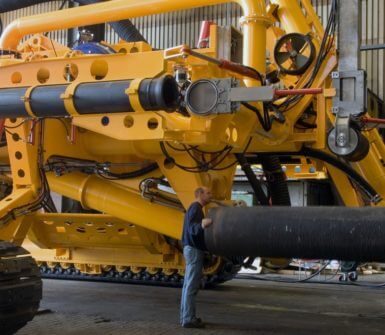

Subsea pipeline trencher– Arthropod 600

Highly innovative subsea pipeline trencher suitable for both pre- and post-lay subsea trenching

Overview

Large-diameter pipeline trenching in a highly efficient way

The Arthopod 600 is a subsea pipeline trencher that is suitable for both pre- and post-lay subsea trenching. The Arthopod 600 meets our client’s wish to have a pipe trencher able to bury large-diameter pipelines. In addition, a more cost-effective subsea pipeline trenching method than using a hopper suction dredger was desired by the client. This desire, in combination with the ultra-short lead time of 7 months, made the project extremely challenging. Because of our team’s intensive efforts and close cooperation between our employees and business partners, Seatools was able to meet this deadline while delivering a product that met our client’s stringent requirements.

Project scope
  • Fully fledged trenching system, including custom-made subsea pipeline trencher, umbilical, umbilical reel (incl. power pack), transformer container, control cabin, operator training
Delivery date
  • August, 2006
Project duration
  • 7 months
Client
  • MRTS

The Arthropod 600 deploys an innovative subsea pipeline trenching technique that creates large trenches in hard soils in a very efficient way. How can we empower you?

Features & Specifications

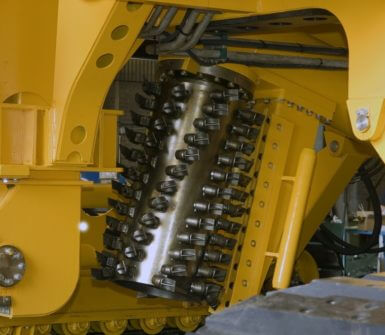

  1. Innovative trenching technique

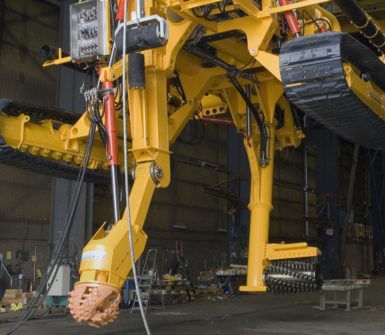

    The Arthropod 600 deploys an innovative subsea pipeline trenching technique that creates large trenches in hard soils in a very efficient way. The Arthropod 600 allows for high trenching capacities considering the available power.

  2. Trenching process automation

    Because its trenching process is highly automated, the trencher runs at optimal trenching speeds while reducing operational risk in case of an operator error.

  3. Optimal performance regardless of soil condition

    Although the trencher was primarily designed to perform in hard soil conditions, it is also equipped with a soft soil removal tool. This tool enables the operator to dispose the trench of any soft soils and loose material that may accumulate at the bottom of the trench. The machine’s hydraulic system facilitates flexible power allocation to cutters and pumps, readily adapting the Arthropod to the soil conditions at hand while delivering optimal performance under all circumstances.

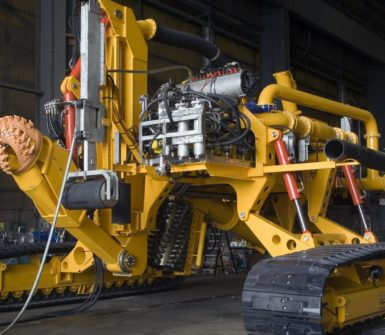

Arhtropod subsea pipeline trencher

Specifications

  • Type of trencher Self-propelling mechanical trencher
  • Installed power 600 kW
  • Weight 55 mT (dry)
  • Pipe diameter range 12 – 50 inches
  • Maximum burial depth 3.5 meters (bottom of trench)
  • Soil capability 400 kPa
  • Water depth range 4 – 350 meters
