Basic series subsea compensator installed on subsea monitoring system
HomeSubsea compensatorsBasic Series

Basiccompensators

Cost-effective compensator of a light-weight design

Overview

Ideally suited for applications in which weight constitutes an important performance criterion

The basic series compensator range was designed for applications that require minimum weight as an important or even decisive performance criterion. Typical applications are inspection, working-class, and other types of ROVs. The basic series compensators can be executed with various types of electric connectors and mounting components. Please contact our sales department to discuss your specific use and requirements.

In addition to our hydraulic compensators, we also deliver complete subsea (hydraulic) solutions. Please contact our sales department to discuss your particular challenge.

Typical applications
  • Subsea equipment for which weight is an important performance criterion, such as subsea monitoring systems, ROVs, subsea saw systems, and oil-filled electronics cabinets.
Key features
  • Lightweight design
  • Cost competitive pricing
  • Low-level warning
Applied to
  • Inspection ROV – Rockpiper
  • Subsea monitoring system – TSMS
  • Subsea diamond wire saw - Barracuda

To ensure that the right size and type of compensator is selected, we advise our clients during the selection process. We do so, taking temperature ranges, pressure ranges, filling levels, entrapped air, fluid behaviors, and other factors into account.

Key Features

  1. Lightweight design

    The basic series compensators offer an excellent volume-to-weight ratio. They are ideally suited for situations in which weight constitutes an important performance criterion.

  2. Cost-competitive design

    Thanks to its simple and effective design, the basic compensator is delivered at a competing price.

  3. Low-level warning

    Basic series compensators are available with a low level switch.

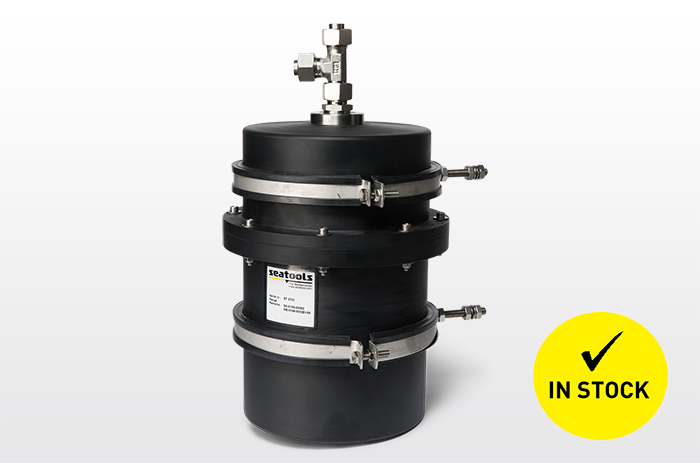

Basic series subsea compensator

Basic series compensator range

  • Compensation volume (liters)
  • Pressure min / max (bar)
  • Depth rating (msw)
  • Weight (kg)
  • Compensation volume (USG)
  • Pressure min / max (PSI)
  • Depth rating (ft)
  • Weight (lbs)

Basic 0.6L

Basic series subsea pressure compensator
  • Compensation volume (liters)0.6
  • Pressure min / max (bar)0.16 (empty) – 0.35 (full)
  • Depth rating (msw)3000
  • Weight (kg)1.44
  • Compensation volume (USG) 0.16
  • Pressure min / max (PSI) 2.32 (empty) – 5.08 (full)
  • Depth rating (ft) 9843
  • Weight (lbs) 3.17

Basic 1.4L

  • Compensation volume (liters)1.4
  • Pressure min / max (bar)0.16 (empty) – 0.29 (full)
  • Depth rating (msw)3000
  • Weight (kg)2.35
  • Compensation volume (USG) 0.37
  • Pressure min / max (PSI) 2.32 (empty) – 4.21 (full)
  • Depth rating (ft) 9843
  • Weight (lbs) 5.18

Basic 3.3L

  • Compensation volume (liters)3.3
  • Pressure min / max (bar)0.15 (empty) – 0.26 (full)
  • Depth rating (msw)3000
  • Weight (kg)6.00
  • Compensation volume (USG) 0.87
  • Pressure min / max (PSI) 2.18 (empty) – 3.77 (full)
  • Depth rating (ft) 9843
  • Weight (lbs) 13.23

Basic 6.0L

  • Compensation volume (liters)6.0
  • Pressure min / max (bar)0.14 (empty) – 0.29 (full)
  • Depth rating (msw)3000
  • Weight (kg)10.0
  • Compensation volume (USG) 1.59
  • Pressure min / max (PSI) 2.03 (empty) – 4.21 (full)
  • Depth rating (ft) 9843
  • Weight (lbs) 22.05

MULTIMEDIA

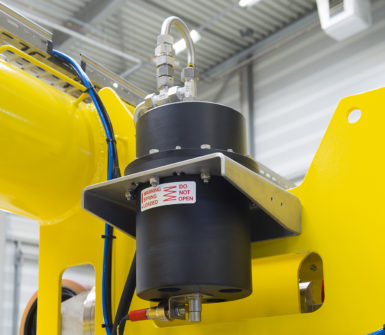

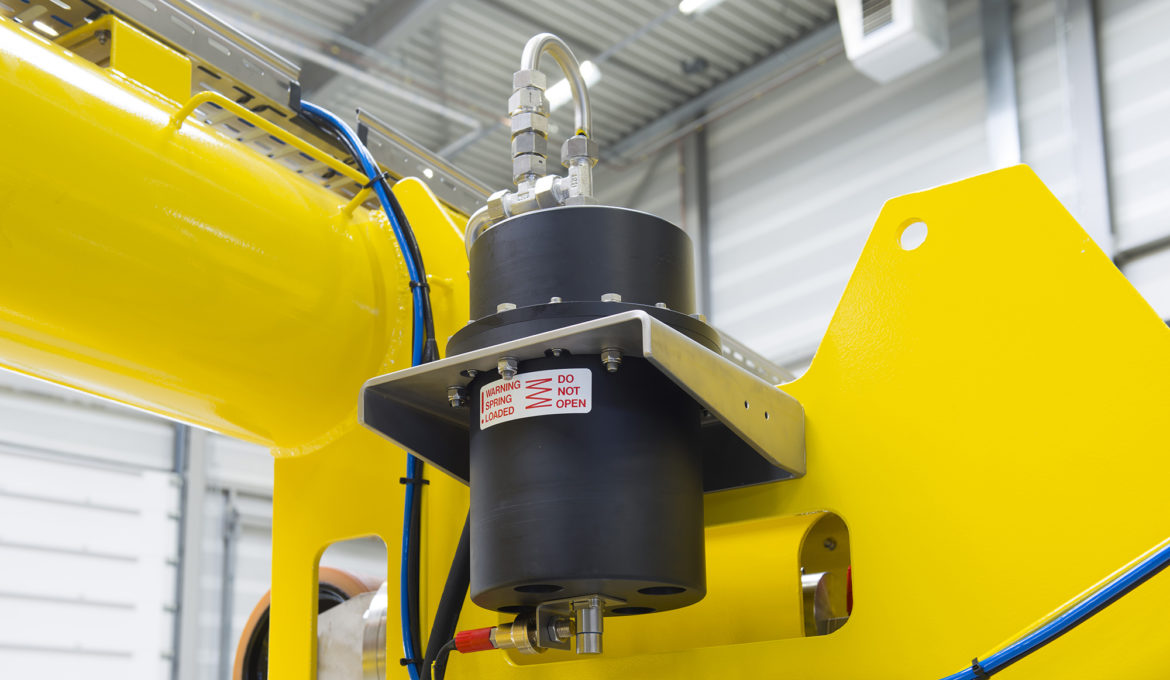

Light weight subsea pressure compensator

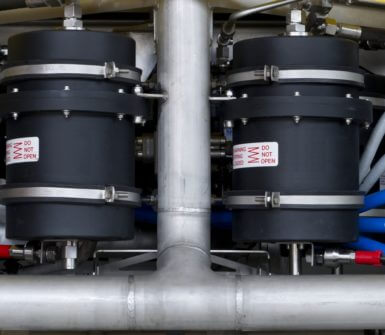

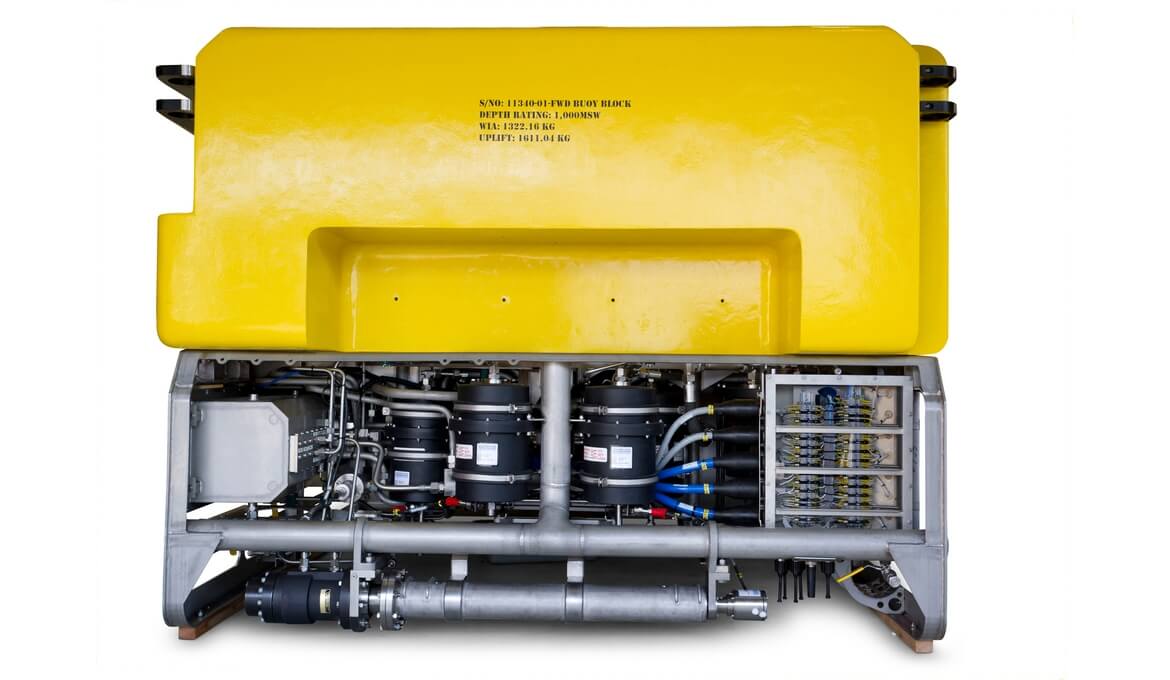

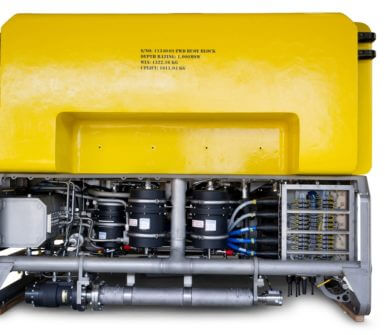

Basic series subsea compensator installed on free-flying inspection ROV

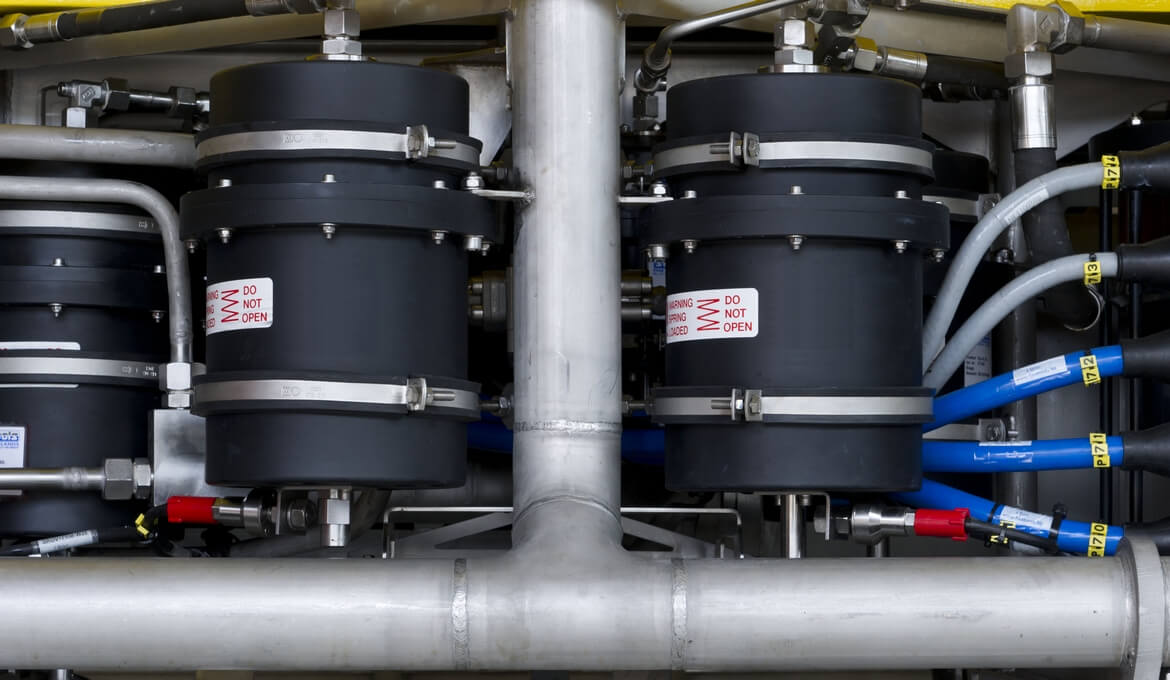

Basic series subsea compensator installed on free-flying inspection ROV
Basic series subsea compensator installed on free-flying inspection ROV
Basic series subsea compensator installed on free-flying inspection ROV

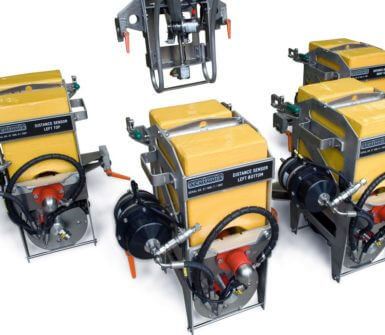

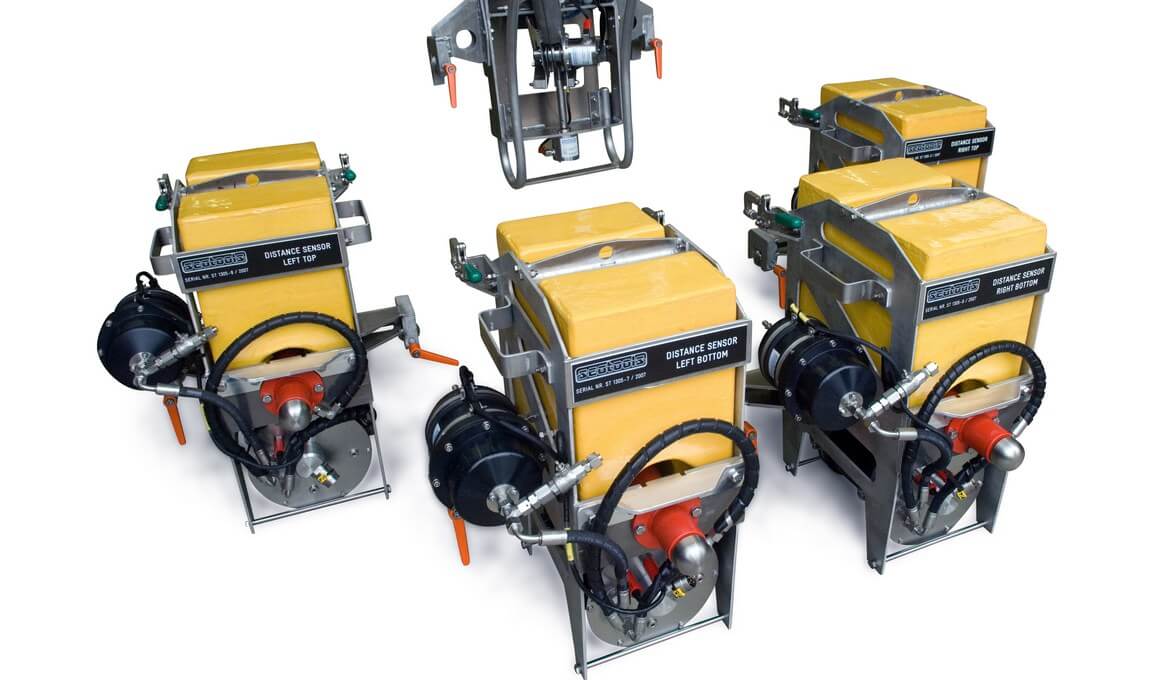

Basic series compensator mounted on subsea monitoring system
1.4-liter basic compensators applied to a subsea monitoring system
Light weight subsea pressure compensator
Basic series subsea compensator installed on free-flying inspection ROV
Basic series subsea compensator installed on free-flying inspection ROV
Basic series compensator mounted on subsea monitoring system

RELATED COMPONENTS

Advanced series underwater hydraulic compensators

Advanced compensators

High-end subsea hydraulic compensators with compensation volumes ranging from 6 to 15 liters. Time-proven, highly reliable, and solid designs that facilitate relatively high overpressures. Largely customizable, with options for hydraulic connections, electric connections, level measurement, and more.

READ MORE
Heavy duty series subsea hydraulic compensators

Heavy duty series

Rugged design subsea hydraulic compensator range with capacities ranging from 40 to 250 litres. Made from stainless steel and able to withstand the most severe of conditions during operations, such as dredging operations, when shock loads and vibrations are ever present.

READ MORE

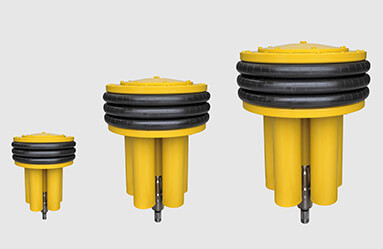

Ultralong lifetime subsea compensators
